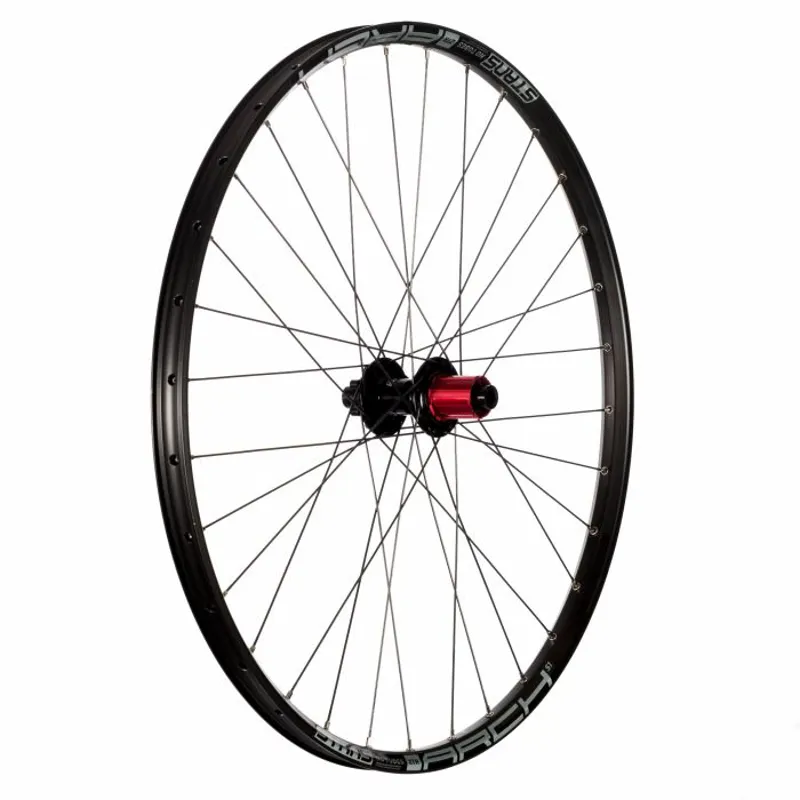

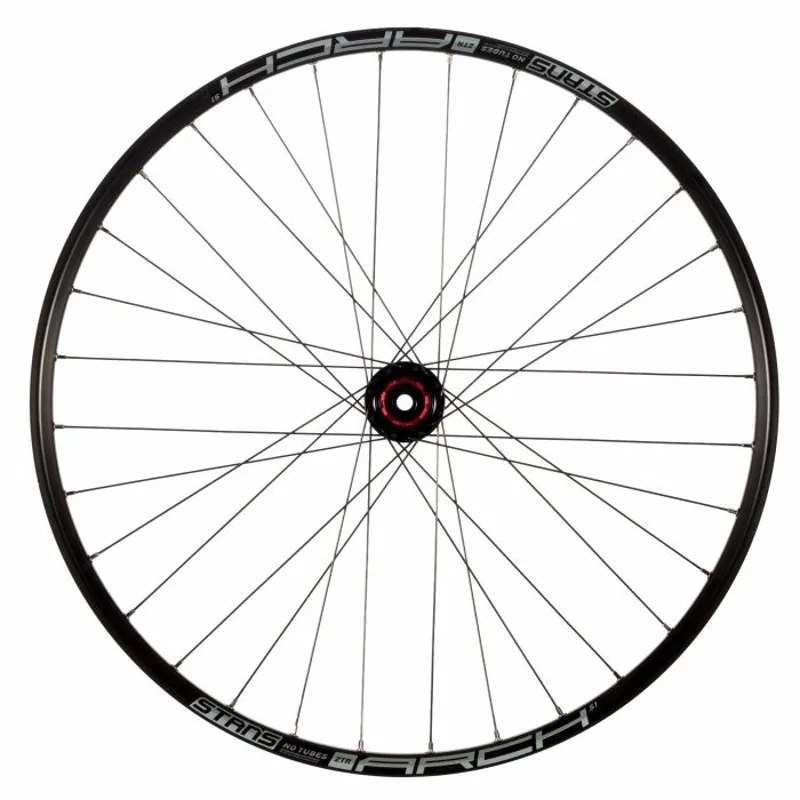

Stans NoTubes Arch S1 29er Rear MTB Wheel – SRAM

Durable enough to handle the most technical trails, yet light enough to rip XC laps, the Arch S1 is one of our most versatile wheelsets yet. This new Arch is designed to provide unheard-of traction and control when running 2.25’’ to 2.50’’ tires. With 32-spokes front and rear, 6061 alloy rims, stainless steel rim eyelets, and easily replaceable standard spokes, the Arch S1 is made for maximum durability. The Arch S1 is built on our faster-engaging, CNC-machined Neo hubs. For wherever you ride the new Arch S1 will be ready to handle it all.

Key Features:

• Durable and lightweight aluminium construction
• Wider rim width for more stability with larger tires
• 2mm wider and 16 grams lighter than Rapid 28
• Rim profile optimized for 2.25” – 2.50” tires

Specifications:

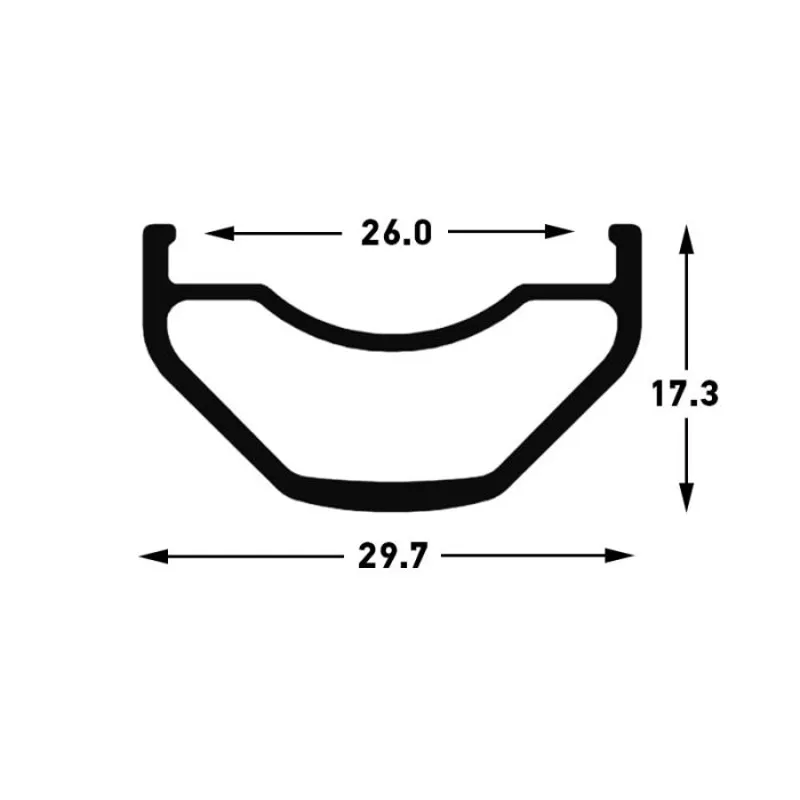

• Rim Internal Width: 26.0mm
• Rim External Width: 29.7mm
• Rim Depth: 17.3mm
• Spokes: Sapim Race Black 2.0/1.8/2.0mm
• Nipples: Secure Lock Brass Silver Nipples

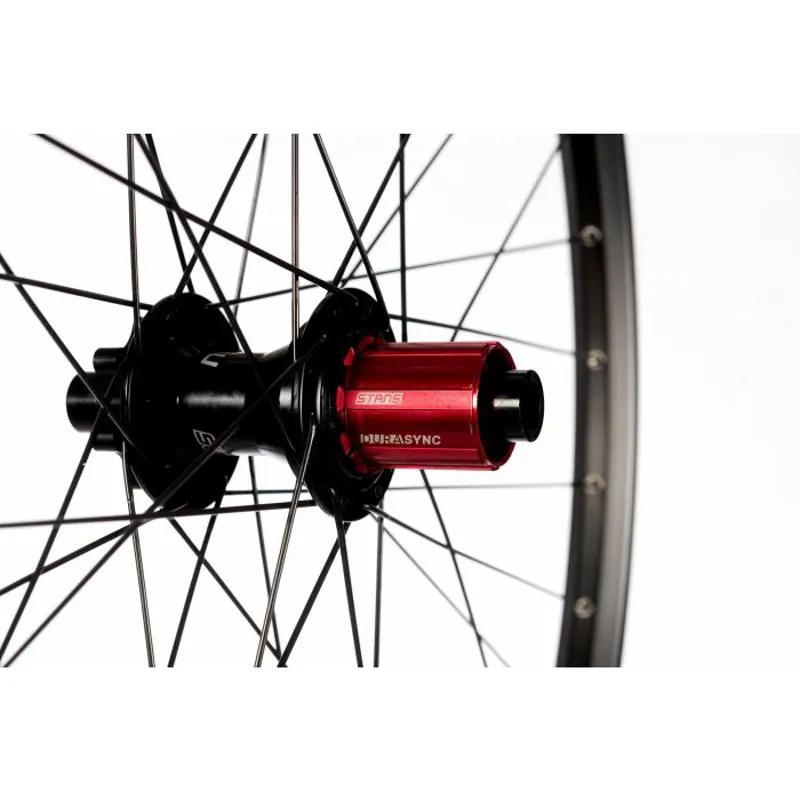

• Hub: Neo with Durasync
• Hole Count: 32-hole
• Rim Material: 6061 Alloy
• Brakes: Disc
• Valve: 35mm Presta
• Rim Weight: 504g
• Rear Wheel Weight: 1031g
• ERD: 604mm
• ETRTO: 622×26
• ISO: 29″x29.7mm
• Tape: 27mm
• Max Spoke Tension: 125kgf (1225N)
• Max Pressure with 2.2″ Tire: 39psi
• Max Pressure with 2.5″ Tire: 36psi
• Max Rider Weight: 230lbs
