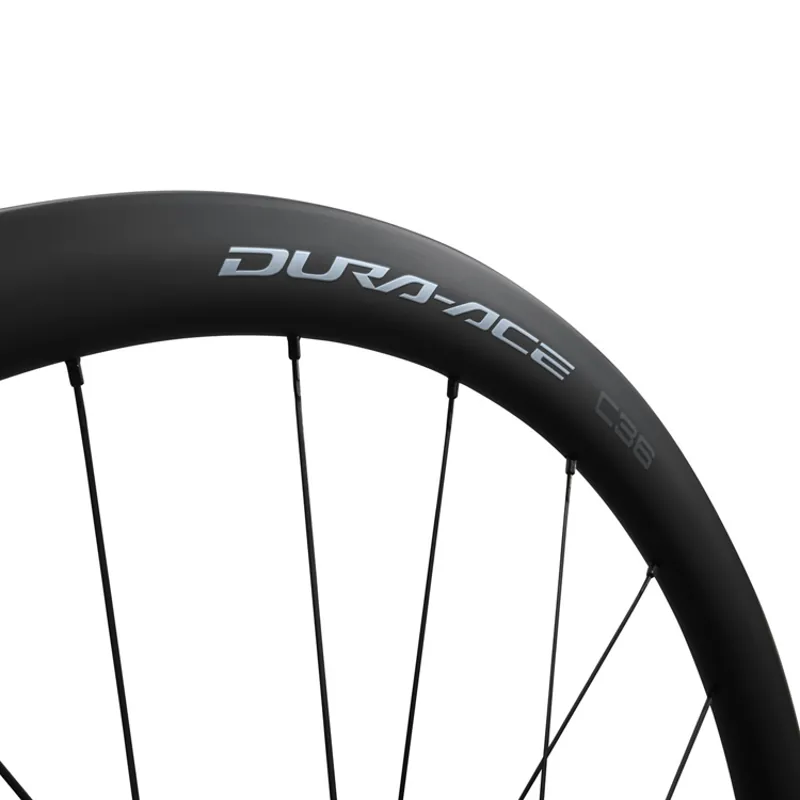

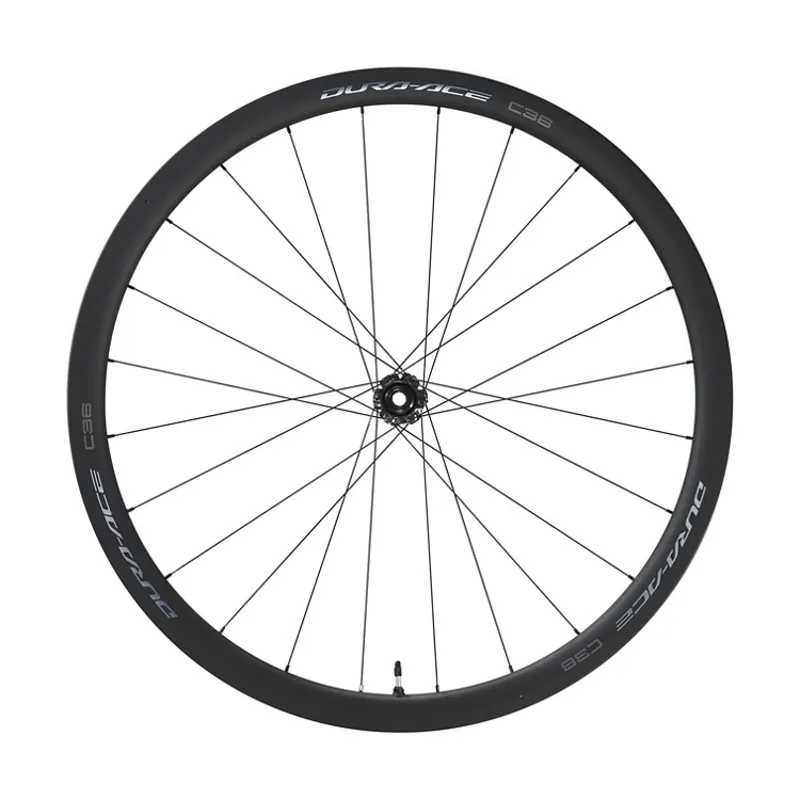

Shimano WH-R9270 Dura Ace C36 Tubular Carbon Disc Front Road Wheel

For days in the mountains, the all-new DURA-ACE C36 tubular blends the handling and lightweight tubular with the precision of disc brakes.

Designed for the demands of professional racing, the new DURA-ACE C36 tubular brings lightweight tubular tires and the cutting-edge technology of disc brakes together. A new FREEHUB design drops weight while increasing driving rigidity.

Key Features:

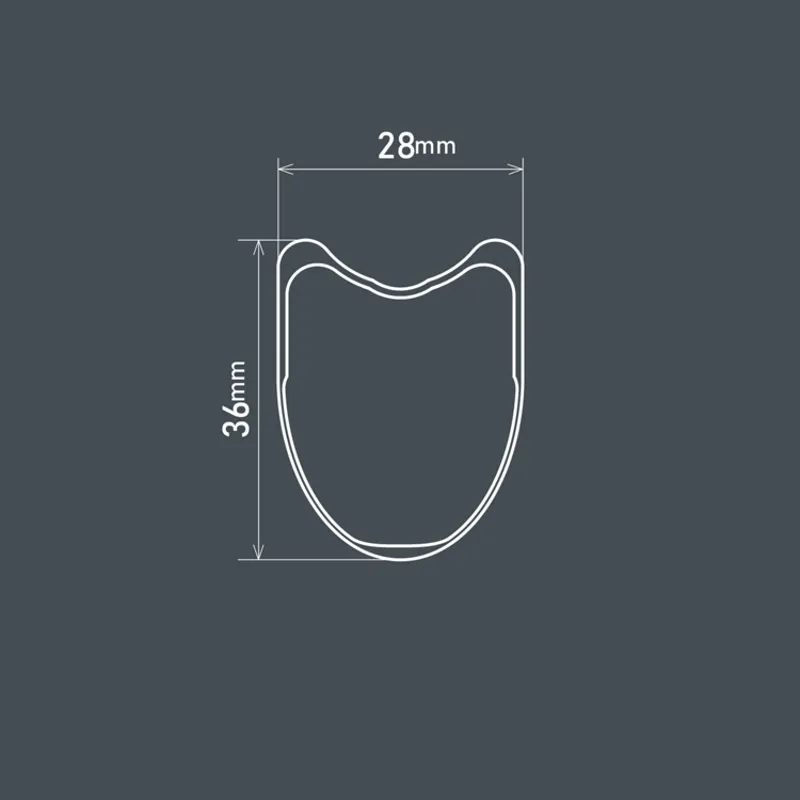

• Lightweight tubular full carbon 36 mm deep rim for improved aerodynamics, increased rigidity and excellent inertia for sprinters and TT specialists
• Easy to use Center Lock rotor mount for use with disc brakes
• Stainless steel butted (2.0-1.8-2.0) and bladed straight pull spokes for optimal balance and rigidity
• Elbow-less spokes make for a strong yet compliant wheel
• High lateral rigidity is produced with a wide flange spacing
• Labyrinth double-contact sealing effectively shuts out water and dirt
• Alloy cone with integrated steel Borozon treated bearing races – super mirror finish reduces friction
• Cold forged, machined aluminium hub shell and oversized 7075 alloy axle keep the wheel weight to a minimum
• For 100 x 12 mm axle
• 700C tubular compatible

Technologies

Center Lock
The CENTER LOCK system makes an easy rotor installation possible with a spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

D2
Aerodynamic performance is affected by wind direction. To create the D2 rim, SHIMANO engineers considered both frontal and crosswinds, aiming to achieve optimal performance in real-world riding conditions. Extensive prototype testing, in the wind tunnel and on the road, proved that a wide rim shape with a deep tire bed performs best across a wide range of conditions. At yaw angles ranging from 0 to 15 degrees, the SHIMANO D2 rim profile reduces air drag better than others aero shape rims. This rim design also boosts lateral wheel stiffness and offers improved vertical compliance for increased control, comfort and durability on the road.

E-Thru
The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. The 15 mm thru-axle system is 15% stiffer torsionally and 25% stiffer in transverse shear than a traditional 9 mm quick release front axle system. High rigidity is secured while keeping the optimum weight balance. The E-THRU axle hub system minimizes the distortion of suspension while maintaining lightweight for riding around sharp corners at high speed.
