Shimano WH-R9200 Dura Ace C60 Tubular Carbon12spd 700c Rear Road Wheel

Perfect for flatter courses and time trials, the DURA-ACE C60 prioritizes aerodynamic efficiency and lateral rigidity.

For the highest speed situations and the most powerful efforts, the redesigned DURA-ACE C60 wheel pairs a deep-section, all-carbon, tubular rim with an all-new hub design that cuts weight while enhancing drive rigidity. The C60’s construction places an extra emphasis on lateral rigidity making a sprinter’s dream.

Key Features:

• HR: High-Rigidity ver. +20% increased lateral rigidity for powerful riders and sprinters

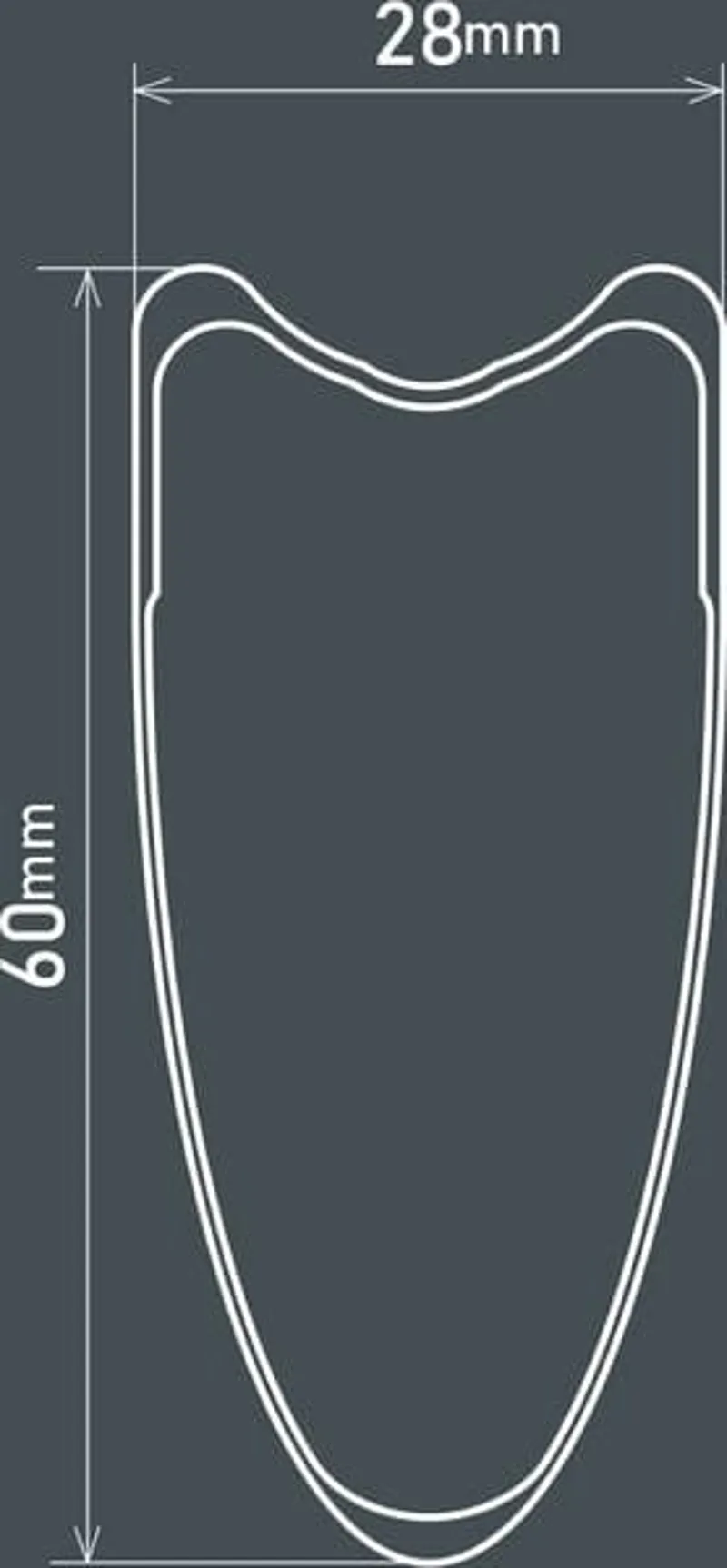

• 60 mm height full carbon rim
• External rim width: 28 mm
• DIRECT ENGAGEMENT
• Compatible only with Shimano road 12-speed cassette sprockets

Technologies

Optbal
The OPTBAL rear wheel spoke system features 21 spokes—14 on the drive side and 7 on the non-drive side. Cassette spacing in today’s wheels produces unbalanced tension in traditional 1:1 spoke systems. This unbalance is intensified with the 11-speed cassette, producing nearly double the tension on the drive side spokes. Generally, high and low tension spokes have respectively tendency toward breaking down and coming loose spoke nipples. Unbalanced tension affects durability and strength. The OPTBAL design rebalances spoke tension, enhancing wheel rigidity and strength for a more durable wheel.

Product Specifications:

• Average weight 796
• Spokes_Straight pull ✔
• Brake type Rim brake
• Axle fixing method Quick release
• O.L.D. (mm) 130
• Rear speeds 12
• Quick-release skewer length (mm)_163 ✔
• Quick-release skewer length (mm)_168 ✔
• Compatible spoke protector CP-W124
• Front/Rear Rear
• OPTBAL (2:1) ✔
• Reflector_AS CATEYE RR-550-WUW SW
• Reflector_DIN CATEYE RR-317-WUA SW
• Reflector_JIS/CPSC CATEYE RR-550-WUW SW
• Rim_Height (mm) 60
• Seal_FREEHUB body Contact
• Seal_Hub Contact
• Spokes_Bladed ✔
• Spokes_Butted ✔
• Spokes_Number 21
• Tire_Recommended size 25-28 – 32-28
• Tire_Type Tubular
• Wheel Size 700C
• Color_1 Hub shell Series Color
• Color_1 Quick release Series Color
• Spline type_new HG spline(ROAD 12-speed) ✔
• Model name WH-R9200-C60-HR-TU
• Engagement type Direct engagement
• Rim_External width (mm) 28
• Spokes_Diameter (mm) 2.0-1.8-2.0
• Specification R
