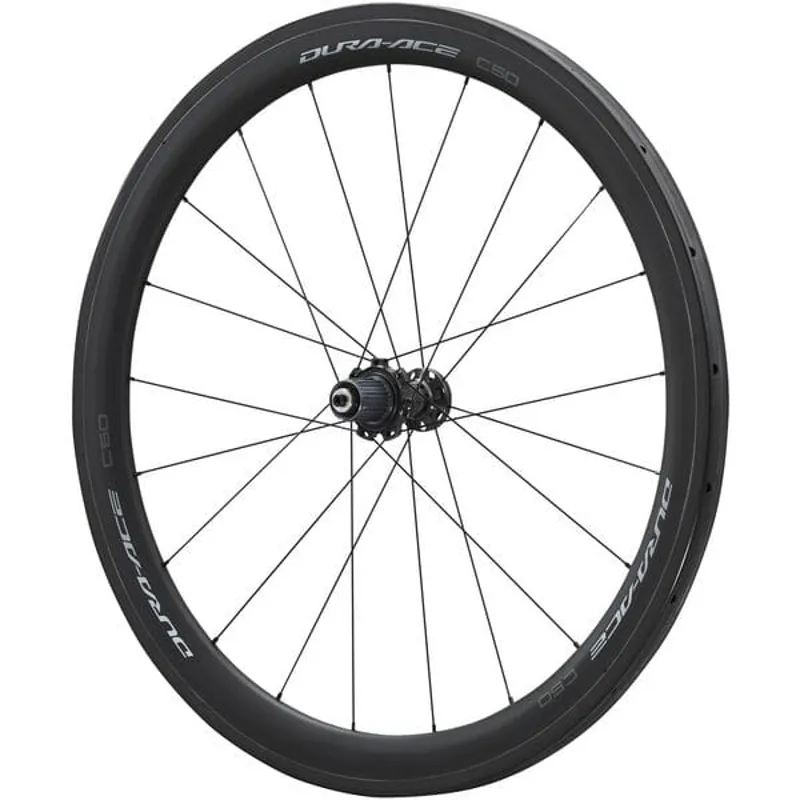

Shimano WH-R9200 Dura Ace C50 Tubular Carbon12spd 700c Rear Road Wheel

Always a solid choice, the DURA-ACE C50 tubular rim brake wheel balances aerodynamics and weight with its 50 mm deep rim and tubular tire interface.

The DURA-ACE C50 tubular rim brake wheel delivers day-in, day-out performance whether climbing, sprinting, descending, or time trialling. It’s 50 mm carbon tubular rim is perfect for courses with a mixed profile.

Key Features:

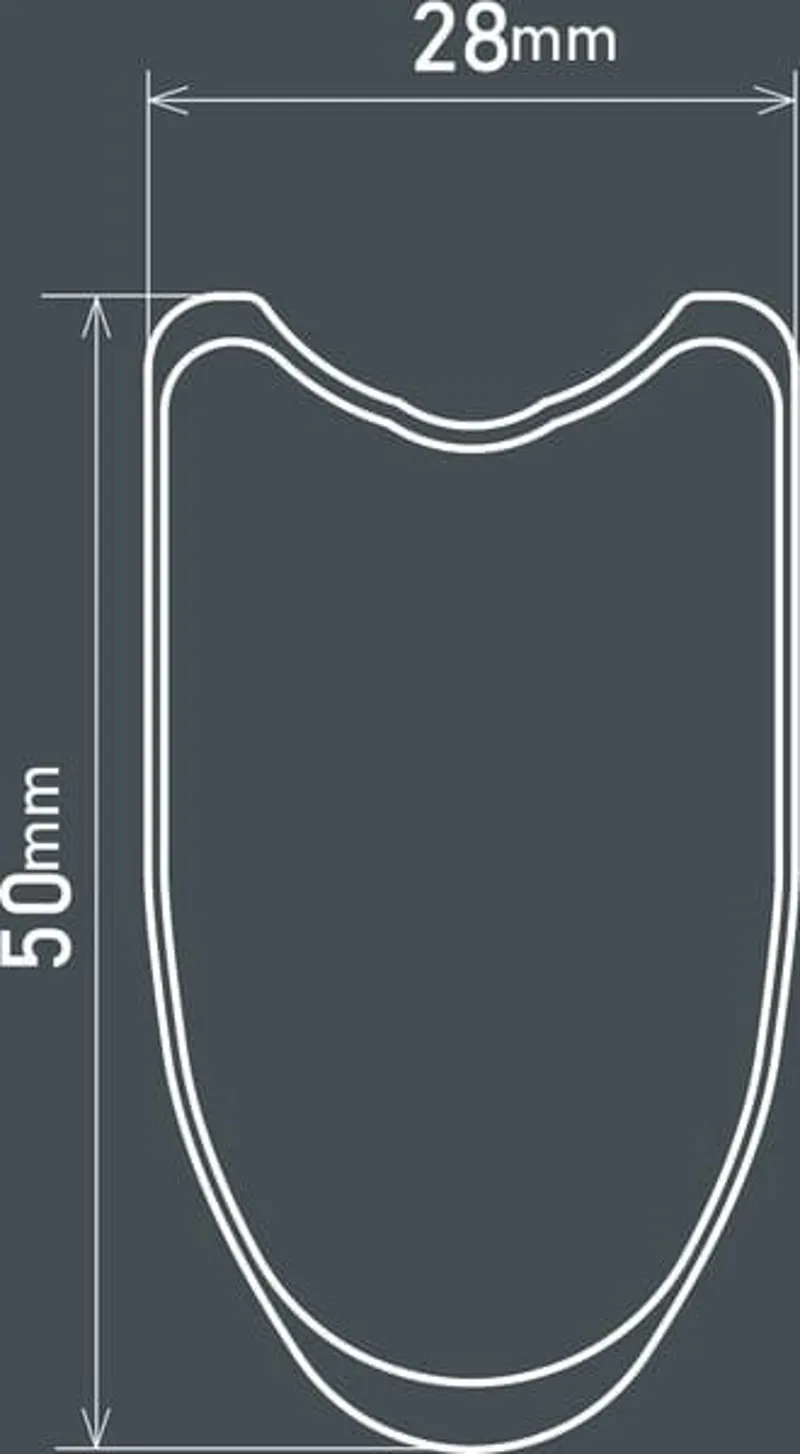

• 50 mm height full carbon rim
• External rim width: 28 mm
• DIRECT ENGAGEMENT
• Compatible only with Shimano road 12-speed cassette sprockets

Technologies:

Optbal

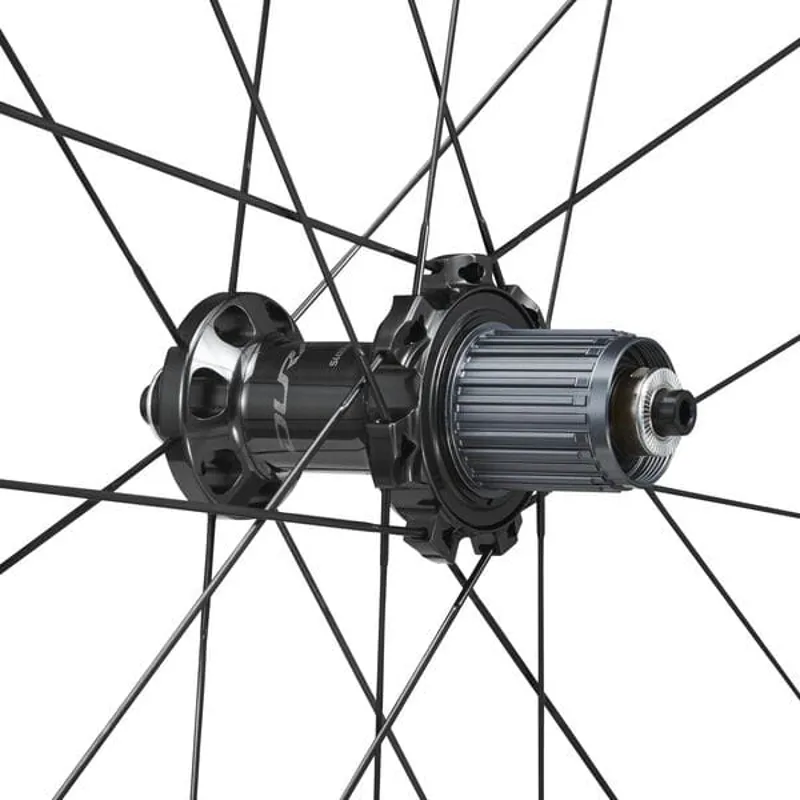

The OPTBAL rear wheel spoke system features 21 spokes—14 on the drive side and 7 on the non-drive side. Cassette spacing in today’s wheels produces unbalanced tension in traditional 1:1 spoke systems. This unbalance is intensified with the 11-speed cassette, producing nearly double the tension on the drive side spokes. Generally, high and low tension spokes have respectively tendency toward breaking down and coming loose spoke nipples. Unbalanced tension affects durability and strength. The OPTBAL design rebalances spoke tension, enhancing wheel rigidity and strength for a more durable wheel.

Product Specifications:

• Average weight 723
• Spokes_Straight pull ✔
• Brake type Rim brake
• Axle fixing method Quick release
• O.L.D. (mm) 130
• Rear speeds 12
• Quick-release skewer length (mm)_163 ✔
• Quick-release skewer length (mm)_168 ✔
• Compatible spoke protector CP-W124
• Front/Rear Rear
• OPTBAL (2:1) ✔
• Reflector_AS CATEYE RR-550-WUW SW
• Reflector_DIN CATEYE RR-317-WUA SW
• Reflector_JIS/CPSC CATEYE RR-550-WUW SW
• Rim_Height (mm) 50
• Seal_FREEHUB body Contact
• Seal_Hub Contact
• Spokes_Bladed ✔
• Spokes_Butted ✔
• Spokes_Number 21
• Tire_Recommended size 25-28 – 32-28
• Tire_Type Tubular
• Wheel Size 700C
• Color_1 Hub shell Series Color
• Color_1 Quick release Series Color
• Spline type_new HG spline(ROAD 12-speed) ✔
• Model name WH-R9200-C50-TU
• Engagement type Direct engagement
• Rim_External width (mm) 28
• Spokes_Diameter (mm) 2.0-1.6-2.0
• Specification R
