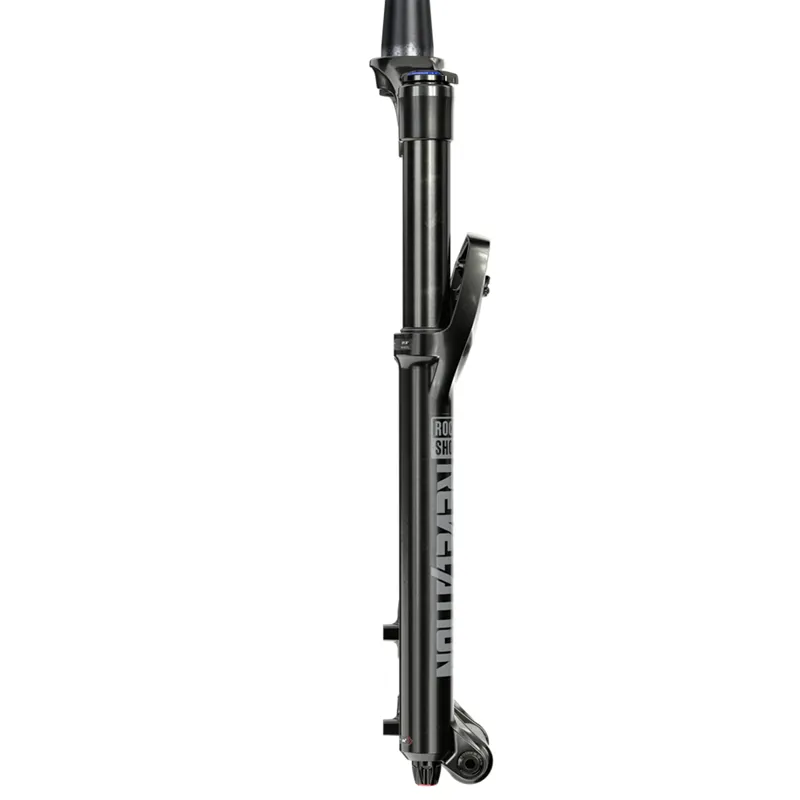

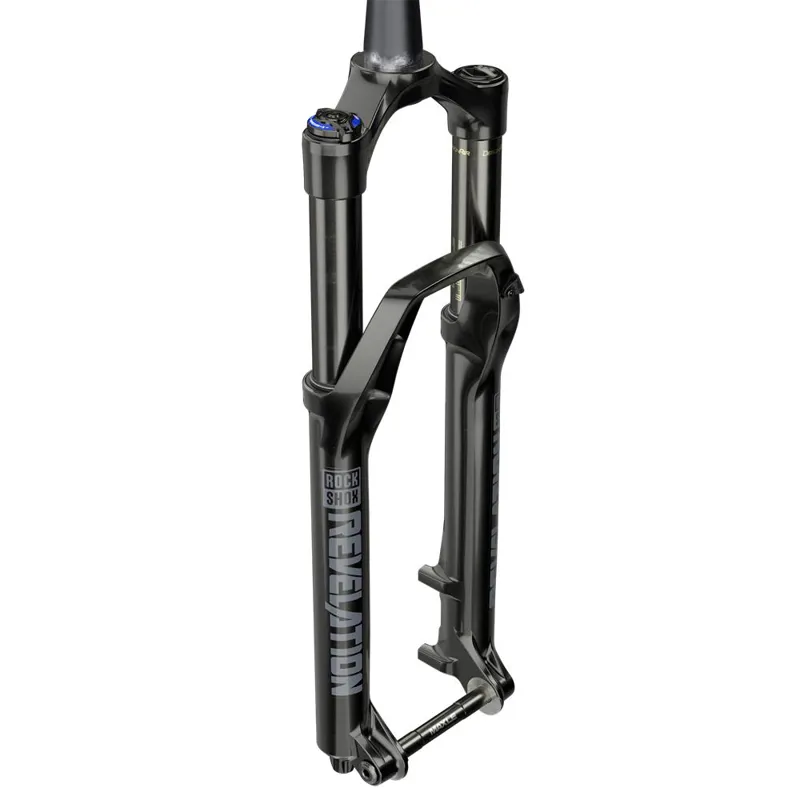

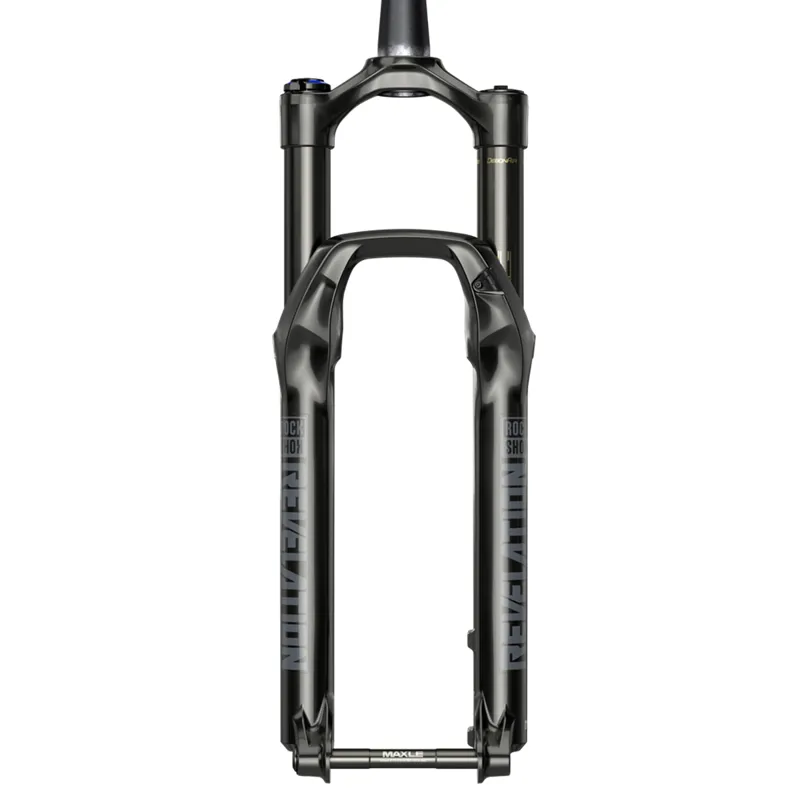

Rock-shox RockShox Revelation RC Crown 27.5 1.5 46mm OS Boost – 15x110mm

Rock Shox Revelation is all grown up and ready to explore wherever the trail may turn. Value-packed, the revelation features the updated debonair air spring paired with the motion control damper and 35mm fast black upper tubes.

Features

• updated highly tunable debonair™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
• new graphic package for a fresh, premium look
• motion control™ damping featuring low-speed compression adjustment to firm
• 35mm fast black upper tubes
• chassis derived from pike

specifications
model designator (SF): RC
wheel size: 27.5″
travel (mm): 120mm, 130mm, 140mm, 150mm, 160mm
damper type: motion control
fork offset: 46mm (27.5″)
maxle included: maxle stealth
colour (FS): gloss black
steerer: 1.5″ tapered
axle: 15x110mm boost™
axle to crown (mm): 512, 522, 532, 542, 552
brake type (FD): disc
crown material: forged, hollow aluminium
lower leg material: magnesium
upper tube finish: fast black
upper tube type: 35mm tapered wall aluminium
damper adjust: crown
damping adjustments: extl rebound, low-speed comp
volume reducer: 4/6 tokens
Spring Debon: air
max tire diameter (mm): 732
max tire width (mm): 81
maximum rotor size: 220mm
minimum rotor size: 180mm
crown od (mm): 58
part weight (g): 1895
