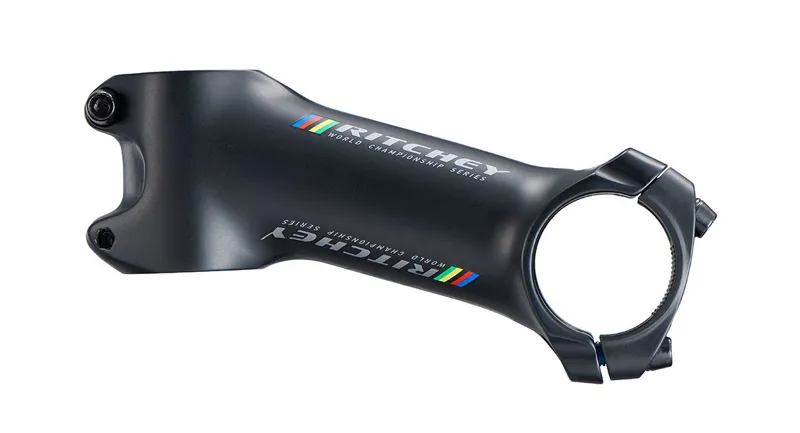

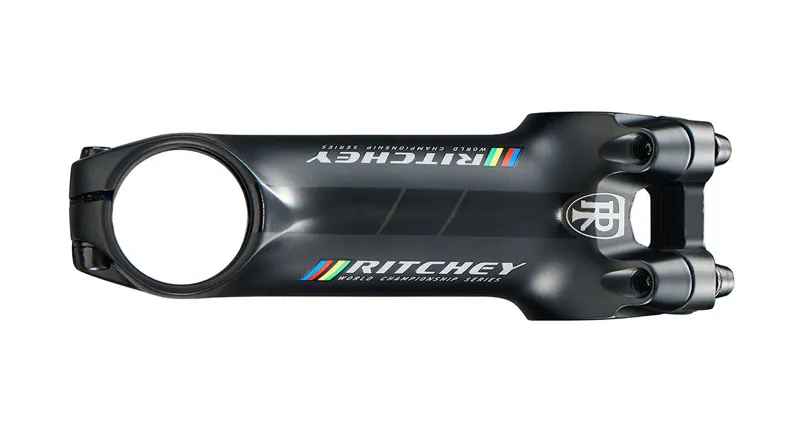

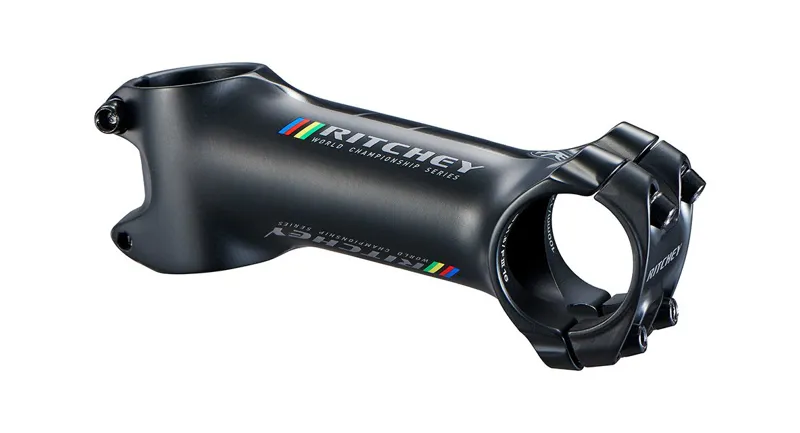

Ritchey WCS C220 73D Road/MTB Stem – Black

The WCS C220 73D Stem offers 17-degrees of positive or negative rise. First proven on the Ritchey Trail Stem, the C220 handlebar clamp design creates a more secure interface by wrapping a full 220 degrees over the handlebar. Bolt forces are aligned with the clamp so that the stem body 'embraces' the handlebar, which is less prone to damaging lightweight bars. This clamp design allows for a lighter faceplate and stem body with no sacrifice in strength or stiffness.





The stem body is forged 2014 aluminium for further weight reduction. Premium quality CrMo steel bolts are used throughout.



• Material: 3D forged 2014 alloy body

• 4 x 4mm coated CrMo steel forward-facing faceplate bolts

• 2 x 4mm coated CrMo steel offset steer tube clamp bolts

• 5Nm torque max on all hardware

• Compatible with all 31.8 bars

• Press-fit clamp design installs and removes like a standard stem

• Lengths: 70-130mm

• Angle: 73/17 degree

• Steerer Height: 42mm

• Steerer: 1-1/8”

• Faceplate Width: 42mm

• Blatte finish

• 121g (110mm) (measured on 110mm option)
