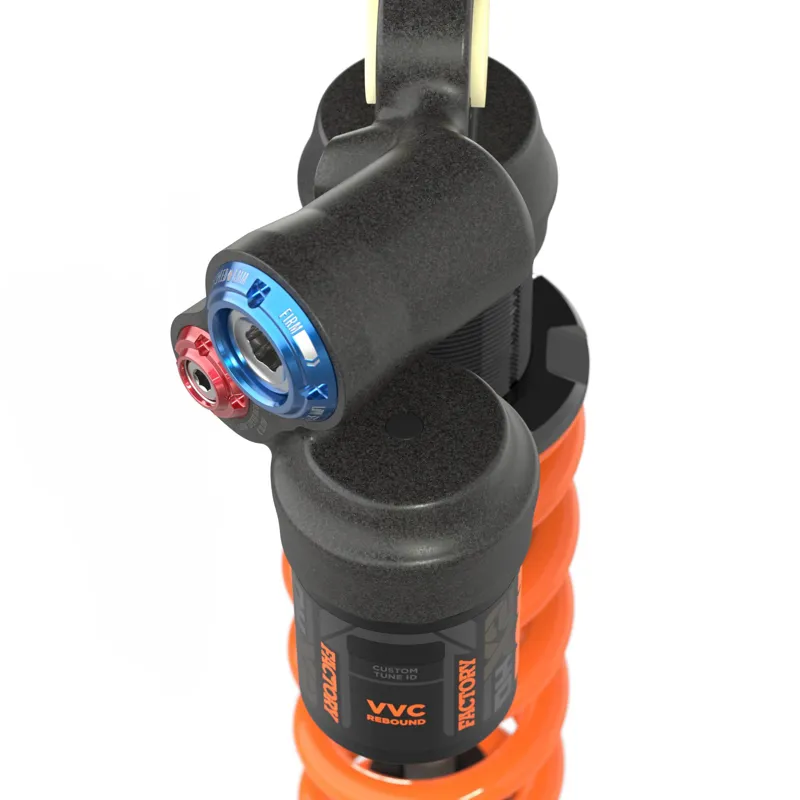

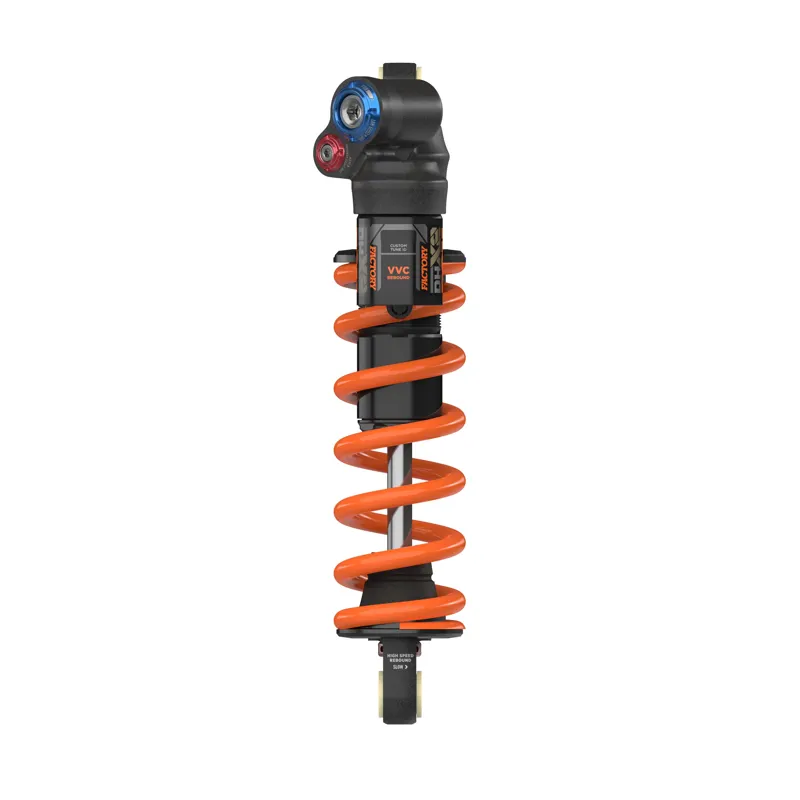

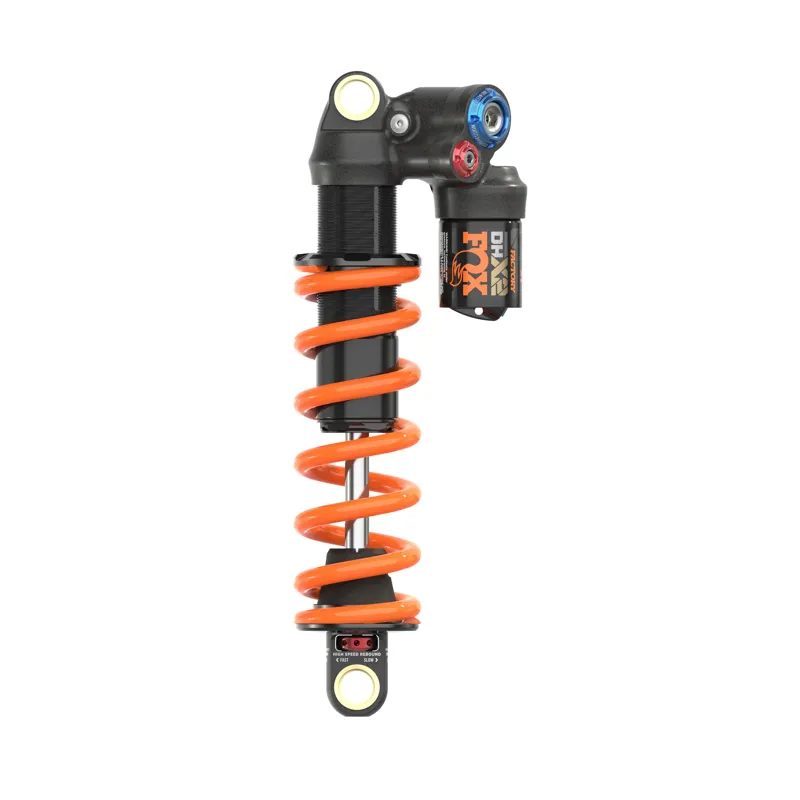

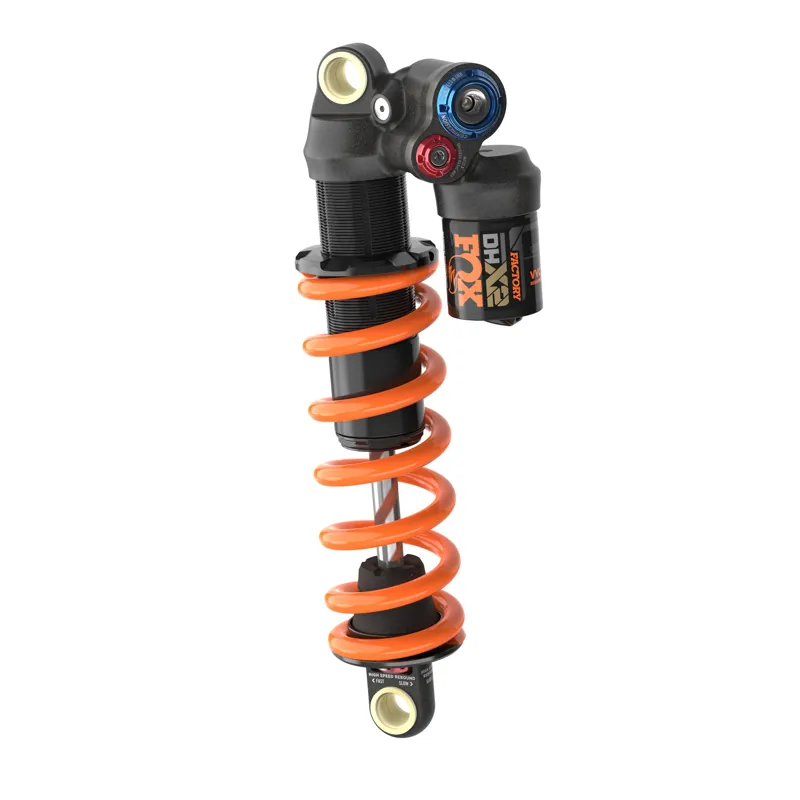

Fox Racing Shox FOX DHX2 Factory Rear Shock

Nothing sticks to the ground quite like a coil shock. The DHX2 takes that sensation and buttresses it with sophisticated progressive damping, a massive overall tuning range, and super low-friction internals in order to capitalize on the full race-spec magic carpet experience.

“Factory,” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race.

Please Note: Images are provided for illustrative purposes. The spring and mounting hardware are not included.

Features:

• NEW graphics.
• NEW chassis & damper.
• The improved bearing ratio for metric sizes.
• NEW detents on spring collar to prevent loosening under light preload conditions.
• NEW high-flow main piston.
• NEW MCU bumper for increased end stroke progression and bottom-out control.
• Matching 8-click HSC and HSR adjustment on Grip2 forks and X2 shocks.
• Reduced friction.
• Improved high-speed rebound tunability via the addition of VVC (Variable Valve Control).
• Increased control and decreased harshness via linear damping.
• Steel outer body and finned inner body for improved structural rigidity and reduced hysteresis.
• Ultra-low friction, highly durable damper shaft finish.
• Independent firm mode circuit ÔÇô firmer lockout than the previous DHX2.
• Reduced length reservoir for better fit on more frames.

Adjustments:

• Optional 2-position Open/Firm lever (retains high and low-speed compression adjustment)
• High-speed compression – 8 clicks
• Low-speed compression – 16 clicks
• High-speed rebound (w/VVC) – 8 clicks
• Low-speed rebound – 16 clicks
• Coil spring preload – (new detents on spring collar)
