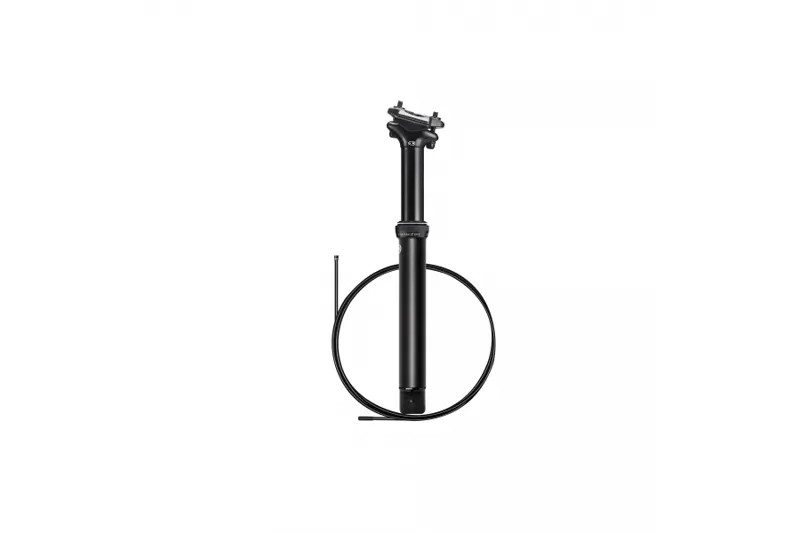

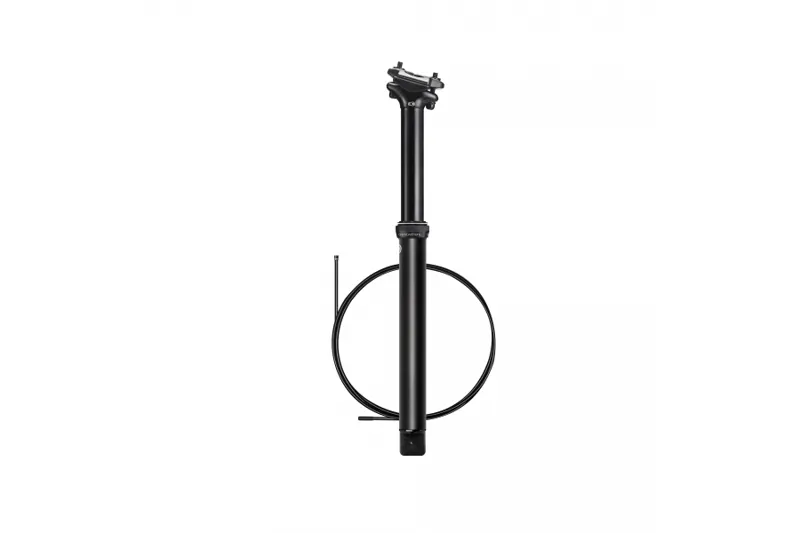

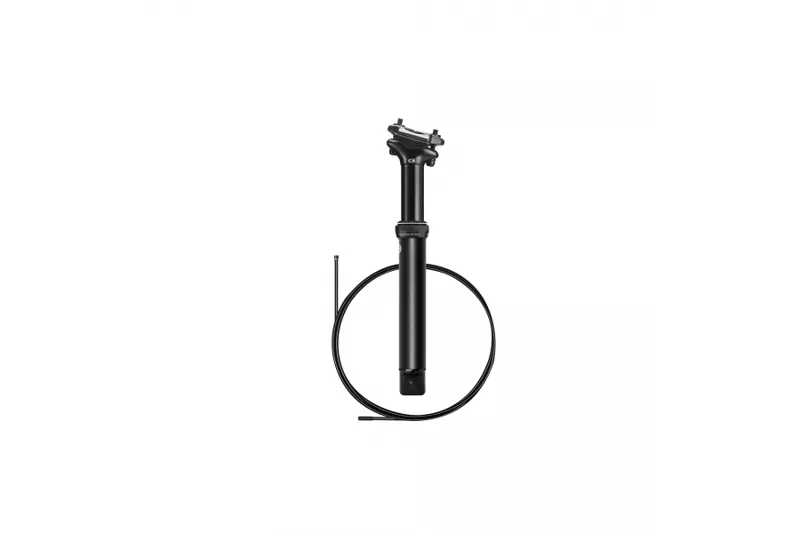

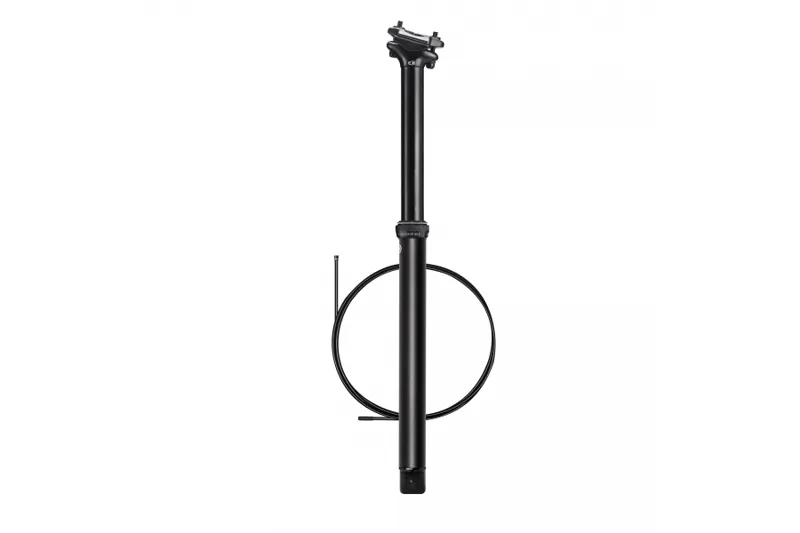

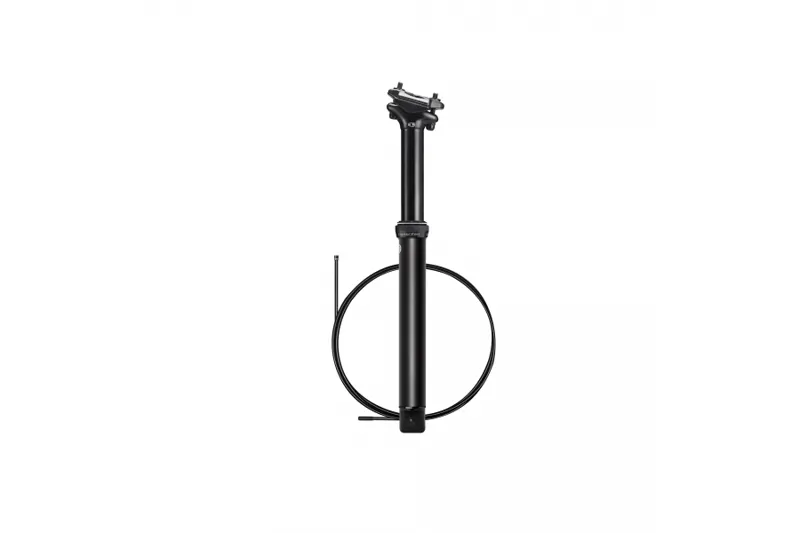

The all-new Highline delivers infinite adjustment, a smooth feel, and easy installation for any bike.
Details:
- Shorter insertion length to fit more bikes
- Premium Trelleborg® sealing
- Exclusive Igus® LL-glide bearings and keys
- Jagwire® cable and housing
- Self-contained hydraulic cartridge delivers industry-leading quality and reliability
- Internal routing
- Quick connect mechanism for ease of cable installation
- Linear actuator for quick return speed
- 2-bolt standard head
- Remote sold separately (Buy Here)
Specs 60mm
- Material: 7075-T6 aluminium
- Max extended length: 270mm, 360mm
- Max insertion length: 270mm Overall: 174mm, 360mm Overall: 264mm
- Minimum stack height: 47mm
- Setback: 0
- Total post length: 270mm, 360mm
- Warranty: 2 years
- Weight: 27.2 (270mm overall): 400g, 27.2 (360mm overall): 440g
Specs 80mm
- Material: 7075-T6 aluminium
- Max extended length: 100mm
- Max insertion length: 264mm
- Minimum stack height: 47mm
- Setback: 0
- Total post length: 380mm
- Warranty: 2 years
- Weight: 27.2: 460g, 30.9: 550g, 31.6: 560g
Specs 100mm
- Material: 7075-T6 aluminium
- Max extended length: 241mm
- Max insertion length: 220mm
- Minimum stack height: 47mm
- Setback: 0
- Total post length: 370mm
- Warranty: 2 years
- Weight: 27.2: 480g, 30.9: 485g, 31.6: 503g, 34.9: 580g
Specs 125mm
- Material: 7075-T6 aluminium
- Max extended length: 290mm
- Max insertion length: 245mm
- Minimum stack height: 47mm
- Setback: 0
- Total post length: 421mm
- Warranty: 2 years
- Weight: 27.2: 505g, 30.9: 525g, 31.6: 545g, 34.9: 635g
Specs 150mm
- Material: 7075-T6 aluminium
- Max extended length: 337mm
- Max insertion length: 270mm
- Minimum stack height: 47mm
- Setback: 0
- Total post length: 469mm
- Warranty: 2 years
- Weight: 30.9: 565g, 31.6: 587g, 34.9: 685g
Specs 170mm
- Material: 7075-T6 aluminium
- Max extended length: 378mm
- Max insertion length: 285mm
- Minimum stack height: 47mm
- Setback: 0
- Total post length: 505mm
- Warranty: 2 years
- Weight: 30.9: 586g, 31.6: 609g, 34.9: 735g
